Three-dimensional simulation of horseshoe vortex and local scour around a vertical cylinder using an unstructured finite-volume technique.

Zhang, Wei; Zapata, Miguel Uh; Bai, Xin; Pham Van Bang, Damien ORCID: https://orcid.org/0000-0001-8669-0724 et Nguyen, Kim Dan (2020). Three-dimensional simulation of horseshoe vortex and local scour around a vertical cylinder using an unstructured finite-volume technique. International Journal of Sediment Research , vol. 35 , nº 3. pp. 295-306. DOI: 10.1016/j.ijsrc.2019.09.001.

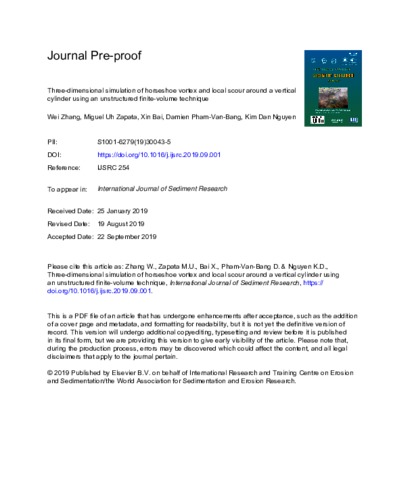

Prévisualisation

PDF Disponible sous licence Creative Commons Attribution Non-commercial No Derivatives. Télécharger (4MB) | Prévisualisation

Résumé

A Large Eddy Simulation model is developed to simulate the hydrodynamics and scour process around a circular cylinder. The Navier-Stokes solver is based on the projection method and a second-order unstructured finite-volume method. A sigma-coordinate system is used to obtain an accurate representation of the evolution of the sediment-water interface. Bed erosion is simulated by solving the sediment continuity equation using a mass-conservating sand-slide algorithm and a bedload transport rate, which is based on a description of physical processes (Engelund & Fredsøe, 1976). Simulations of flow around a vertical cylinder for free-slip bed, rigid bed, and live-bed cases are done. The mean velocity profile and shear stress validate the accuracy of this model. Horseshoe vortex and lee-wake vortex shedding structure are simulated, and the results are thoroughly discussed in depth. The formation and the temporal development of the scour hole and other topographic bed features are successfully reproduced. The current paper reports the first known investigation of both scour evolution and coherent structure using large-eddy simulation.

Type de document:	Article
Mots-clés libres:	non-hydrostatic flows; horseshoe vortex; wake region; scouring; bedload transport
Centre:	Centre Eau Terre Environnement
Date de dépôt:	04 déc. 2019 15:24
Dernière modification:	15 févr. 2022 21:13
URI:	https://espace.inrs.ca/id/eprint/9597
