Geothermal potential assessment of the Nevado del Ruiz volcano based on rock thermal conductivity measurements and numerical modeling of heat transfer.

Vélez Marquez, Maria Isabel; Blessent, Daniela; Córdoba, Sebastián; López-Sánchez, Jacqueline; Raymond, Jasmin ORCID: https://orcid.org/0000-0002-7486-9185 et Parra-Palacio, Eduardo (2018). Geothermal potential assessment of the Nevado del Ruiz volcano based on rock thermal conductivity measurements and numerical modeling of heat transfer. Journal of South American Earth Sciences , vol. 81 . pp. 153-164. DOI: 10.1016/j.jsames.2017.11.011.

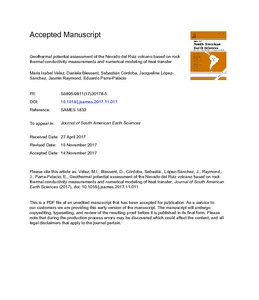

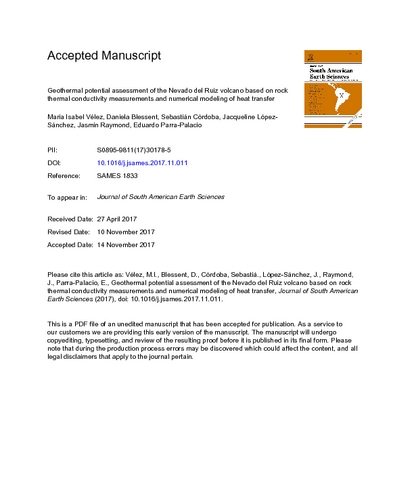

Prévisualisation

PDF Disponible sous licence Creative Commons Attribution Non-commercial No Derivatives. Télécharger (1MB) | Prévisualisation

Résumé

La transcription des symboles et des caractères spéciaux utilisés dans la version originale de ce résumé n’a pas été possible en raison de limitations techniques. La version correcte de ce résumé peut être lue en PDF.

This work presents an estimation of the geothermal potential of the Nevado del Ruiz (NDR) volcano, bridging the knowledge gap to develop geothermal energy in Colombia and improve resource estimates in South America. Field work, laboratory measurements, geological interpretations, 2D numerical modeling, and uncertainty analysis were conducted to the northwest of the NDR to assess temperature at depth and define thermal energy content. About 60 rock samples were collected at outcrops to measure thermal conductivity with a needle probe. A 2D numerical model, built from an inferred geological cross-section, was developed with the software OpenGeoSys to simulate the underground temperature distribution and then estimate the geothermal potential of a 1 km2area with sufficient temperature, assuming a recovery factor equal to 2.4% and a 30 years exploitation time. Coupled groundwater flow and heat transfer were simulated in steady-state considering two different thermal conductivity scenarios. Results show that the average estimated potential is 1.5 × 10−2 MWtm−1 of the reservoir thickness, considering temperatures greater than 150 °C located at a depth of approximately 2 km, in a selected area situated outside of the Los Nevados National Natural Park (NNP), to avoid any direct intervention on this protected area. According to a Monte Carlo analysis considering pessimist and optimist scenarios of thermal conductivity, the estimated geothermal power was 1.54 × 10−2 MW m−1 (σ = 2.91 × 10−3 MW m−1) and 1.88 × 10−2 MW/m (σ = 2.91 × 10−3 MW m−1) for the two modeling scenario considered.

Type de document:	Article
Informations complémentaires:	Résumé avec symboles
Mots-clés libres:	Nevado del Ruiz; Colombia; geothermal potential; thermal conductivity OpenGeoSys
Centre:	Centre Eau Terre Environnement
Date de dépôt:	12 févr. 2018 20:59
Dernière modification:	15 févr. 2022 21:28
URI:	https://espace.inrs.ca/id/eprint/6574
