InSAR and GAT-LSTM integration for dam displacement prediction: Lessons from the Oldman River Dam, Canada.

Farhadiani, Ramin ORCID: https://orcid.org/0000-0002-3368-7764; Mirzadeh, Sayyed Mohammad Javad ORCID: https://orcid.org/0000-0002-3809-882X; Roshani, Ehsan ORCID: https://orcid.org/0009-0001-9551-9643; Cusson, Daniel ORCID: https://orcid.org/0000-0002-2961-6912 et Homayouni, Saeid ORCID: https://orcid.org/0000-0002-0214-5356 (2026). InSAR and GAT-LSTM integration for dam displacement prediction: Lessons from the Oldman River Dam, Canada. International Journal of Applied Earth Observation and Geoinformation , vol. 146 . p. 104968. DOI: 10.1016/j.jag.2025.104968.

Prévisualisation

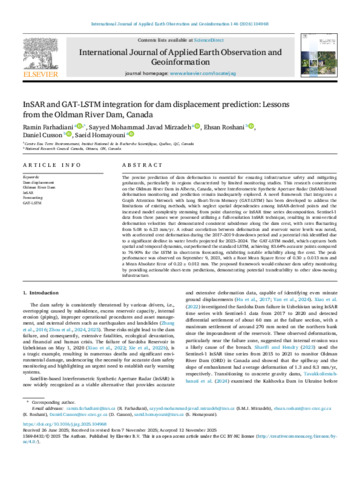

PDF - Version publiée Télécharger (7MB) | Prévisualisation

Résumé

The precise prediction of dam deformation is essential for ensuring infrastructure safety and mitigating geohazards, particularly in regions characterized by limited monitoring studies. This research concentrates on the Oldman River Dam in Alberta, Canada, where Interferometric Synthetic Aperture Radar (InSAR)-based deformation monitoring and prediction remain inadequately explored. A novel framework that integrates a Graph Attention Network with Long Short-Term Memory (GAT-LSTM) has been developed to address the limitations of existing methods, which neglect spatial dependencies among InSAR-derived points and the increased model complexity stemming from point clustering or InSAR time series decomposition. Sentinel-1 data from three passes were processed utilizing a full-resolution InSAR technique, resulting in semi-vertical deformation velocities that demonstrated consistent subsidence along the dam crest, with rates fluctuating from 5.08 to 6.23 mm/yr. A robust correlation between deformation and reservoir water levels was noted, with accelerated crest deformation during the 2017–2019 drawdown period and a potential risk identified due to a significant decline in water levels projected for 2023–2024. The GAT-LSTM model, which captures both spatial and temporal dynamics, outperformed the standard LSTM, achieving 83.64% accurate points compared to 76.90% for the LSTM in short-term forecasting, exhibiting notable reliability along the crest. The peak performance was observed on September 9, 2021, with a Root Mean Square Error of 0.30 ± 0.013 mm and a Mean Absolute Error of 0.22 ± 0.012 mm. The proposed framework would enhance dam safety monitoring by providing actionable short-term predictions, demonstrating potential transferability to other slow-moving infrastructure.

Type de document:	Article
Mots-clés libres:	dam displacement; Oldman river dam; InSAR; forecasting; GAT-LSTM
Centre:	Centre Eau Terre Environnement
Date de dépôt:	03 mars 2026 19:04
Dernière modification:	03 mars 2026 19:04
URI:	https://espace.inrs.ca/id/eprint/16761
