Coded-aperture broadband light field imaging using digital micromirror devices

Liu, Jingdan; Zaouter, Charlotte; Liu, Xianglei; Patten, Shunmoogum A. ORCID: https://orcid.org/0000-0002-2782-3547 et Liang, Jinyang (2021). Coded-aperture broadband light field imaging using digital micromirror devices Optica , vol. 8 , nº 2. pp. 139-142. DOI: 10.1364/OPTICA.413938.

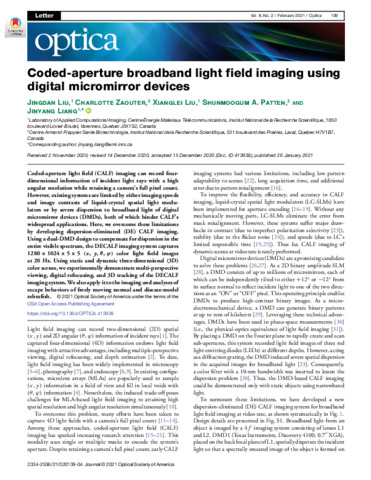

Prévisualisation	PDF - Version publiée Disponible sous licence Creative Commons Attribution. Télécharger (12MB) | Prévisualisation
Prévisualisation	PDF - Matériel supplémentaire Disponible sous licence Creative Commons Attribution. Télécharger (745kB) | Prévisualisation

Résumé

Coded-aperture light field (CALF) imaging can record four-dimensional information of incident light rays with a high angular resolution while retaining a camera's full pixel count. However, existing systems are limited by either imaging speeds and image contrasts of liquid-crystal spatial light modulators or by severe dispersion to broadband light of digital micromirror devices (DMDs), both of which hinder CALF's widespread applications. Here, we overcome these limitations by developing dispersion-eliminated (DE) CALF imaging. Using a dual-DMD design to compensate for dispersion in the entire visible spectrum, the DECALF imaging system captures 1280 x 1024 x 5 x 5 (x, y, theta, phi) color light field images at 20 Hz. Using static and dynamic three-dimensional (3D) color scenes, we experimentally demonstrate multi-perspective viewing, digital refocusing, and 3D tracking of the DECALF imaging system. We also apply it to the imaging and analyses of escape behaviors of freely moving normal and disease-model zebrafish. (C) 2021 Optical Society of America under the terms of the OSA Open Access Publishing Agreement

Type de document:	Article
Mots-clés libres:	-
Centre:	Centre INRS-Institut Armand Frappier
Date de dépôt:	22 juin 2022 19:38
Dernière modification:	22 juin 2022 19:38
URI:	https://espace.inrs.ca/id/eprint/12373
