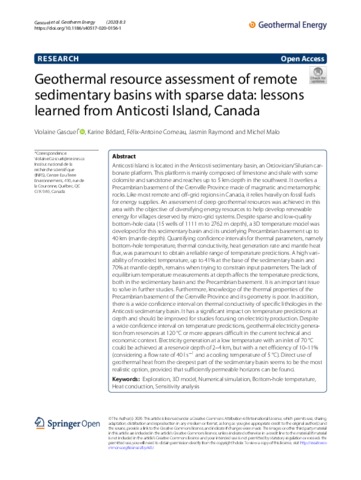

Geothermal resource assessment of remote sedimentary basins with sparse data: lessons learned from Anticosti Island, Canada.

Gascuel, Violaine; Bédard, Karine; Comeau, Félix-Antoine; Raymond, Jasmin ORCID: https://orcid.org/0000-0002-7486-9185 et Malo, Michel (2020). Geothermal resource assessment of remote sedimentary basins with sparse data: lessons learned from Anticosti Island, Canada. Geothermal Energy , vol. 8 , nº 1. pp. 1-32. DOI: 10.1186/s40517-020-0156-1.

Prévisualisation

PDF Télécharger (5MB) | Prévisualisation

Résumé

Anticosti Island is located in the Anticosti sedimentary basin, an Ordovician/Silurian carbonate platform. This platform is mainly composed of limestone and shale with some dolomite and sandstone and reaches up to 5 km depth in the southwest. It overlies a Precambrian basement of the Grenville Province made of magmatic and metamorphic rocks. Like most remote and off-grid regions in Canada, it relies heavily on fossil fuels for energy supplies. An assessment of deep geothermal resources was achieved in this area with the objective of diversifying energy resources to help develop renewable energy for villages deserved by micro-grid systems. Despite sparse and low-quality bottom-hole data (15 wells of 1111 m to 2762 m depth), a 3D temperature model was developed for this sedimentary basin and its underlying Precambrian basement up to 40 km (mantle depth). Quantifying confidence intervals for thermal parameters, namely bottom-hole temperature, thermal conductivity, heat generation rate and mantle heat flux, was paramount to obtain a reliable range of temperature predictions. A high variability of modeled temperature, up to 41% at the base of the sedimentary basin and 70% at mantle depth, remains when trying to constrain input parameters. The lack of equilibrium temperature measurements at depth affects the temperature predictions, both in the sedimentary basin and the Precambrian basement. It is an important issue to solve in further studies. Furthermore, knowledge of the thermal properties of the Precambrian basement of the Grenville Province and its geometry is poor. In addition, there is a wide confidence interval on thermal conductivity of specific lithologies in the Anticosti sedimentary basin. It has a significant impact on temperature predictions at depth and should be improved for studies focusing on electricity production. Despite a wide confidence interval on temperature predictions, geothermal electricity generation from reservoirs at 120 °C or more appears difficult in the current technical and economic context. Electricity generation at a low temperature with an inlet of 70 °C could be achieved at a reservoir depth of 2–4 km, but with a net efficiency of 10–11% (considering a flow rate of 40 l s⁻¹ and a cooling temperature of 5 °C). Direct use of geothermal heat from the deepest part of the sedimentary basin seems to be the most realistic option, provided that sufficiently permeable horizons can be found.

Type de document:	Article
Mots-clés libres:	3D model; bottom-hole temperature; exploration; heat conduction; numerical simulation; sensitivity analysis
Centre:	Centre Eau Terre Environnement
Date de dépôt:	17 avr. 2020 18:09
Dernière modification:	15 févr. 2022 21:33
URI:	https://espace.inrs.ca/id/eprint/10097
