Ensemble Kalman Filter Assimilation of ERT Data for Numerical Modeling of Seawater Intrusion in a Laboratory Experiment.


Téléchargements par mois depuis la dernière année

Plus de statistiques...

Bouzaglou, Véronique, Crestani, Elena, Salandin, Paolo, Gloaguen, Erwan ORCID: https://orcid.org/0000-0002-9400-0276 et Camporese, Matteo (2018). Ensemble Kalman Filter Assimilation of ERT Data for Numerical Modeling of Seawater Intrusion in a Laboratory Experiment. Water , vol. 10 , nº 4. p. 397. DOI: 10.3390/w10040397.

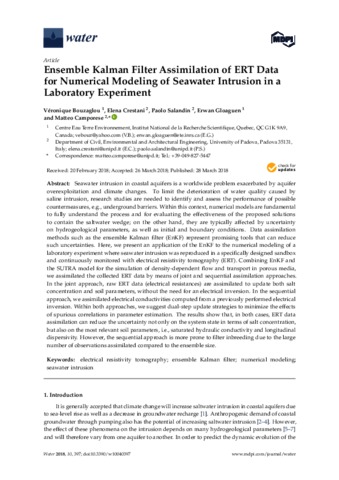

[thumbnail of P3317.pdf]
Télécharger (2MB) | Prévisualisation


Seawater intrusion in coastal aquifers is a worldwide problem exacerbated by aquifer overexploitation and climate changes. To limit the deterioration of water quality caused by saline intrusion, research studies are needed to identify and assess the performance of possible countermeasures, e.g., underground barriers. Within this context, numerical models are fundamental to fully understand the process and for evaluating the effectiveness of the proposed solutions to contain the saltwater wedge; on the other hand, they are typically affected by uncertainty on hydrogeological parameters, as well as initial and boundary conditions. Data assimilation methods such as the ensemble Kalman filter (EnKF) represent promising tools that can reduce such uncertainties. Here, we present an application of the EnKF to the numerical modeling of a laboratory experiment where seawater intrusion was reproduced in a specifically designed sandbox and continuously monitored with electrical resistivity tomography (ERT). Combining EnKF and the SUTRA model for the simulation of density-dependent flow and transport in porous media, we assimilated the collected ERT data by means of joint and sequential assimilation approaches. In the joint approach, raw ERT data (electrical resistances) are assimilated to update both salt concentration and soil parameters, without the need for an electrical inversion. In the sequential approach, we assimilated electrical conductivities computed from a previously performed electrical inversion. Within both approaches, we suggest dual-step update strategies to minimize the effects of spurious correlations in parameter estimation. The results show that, in both cases, ERT data assimilation can reduce the uncertainty not only on the system state in terms of salt concentration, but also on the most relevant soil parameters, i.e., saturated hydraulic conductivity and longitudinal dispersivity. However, the sequential approach is more prone to filter inbreeding due to the large number of observations assimilated compared to the ensemble size.

Type de document: Article
Mots-clés libres: electrical resistivity tomography; ensemble Kalman filter; numerical modeling; seawater intrusion
Centre: Centre Eau Terre Environnement
Date de dépôt: 25 oct. 2018 18:42
Dernière modification: 15 févr. 2022 17:48
URI: https://espace.inrs.ca/id/eprint/7696
