2D sandbox experiments of surfactant foams for mobility control and enhanced LNAPL recovery in layered soils.


Téléchargements par mois depuis la dernière année

Plus de statistiques...

Longpré-Girard, Mélanie, Martel, Richard, Robert, Thomas, Lefebvre, René et Lauzon, Jean-Marc (2016). 2D sandbox experiments of surfactant foams for mobility control and enhanced LNAPL recovery in layered soils. Journal of Contaminant Hydrology , vol. 193 . p. 63-73. DOI: 10.1016/j.jconhyd.2016.09.001.

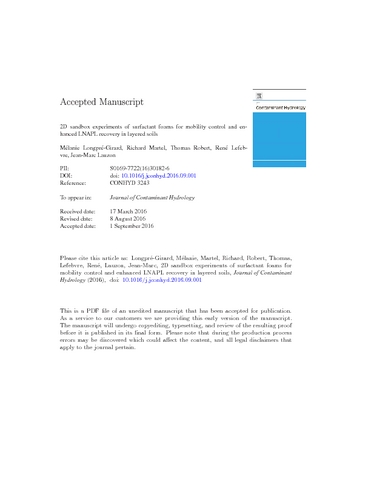

[thumbnail of P2969_PP.pdf]
Disponible sous licence Creative Commons Attribution Non-commercial No Derivatives.

Télécharger (1MB) | Prévisualisation


The ability of surfactant foam to enhance mobility control and LNAPL recovery in a heterogeneous porous media was investigated through sandbox experiments with p-xylene used as LNAPL. A layered heterogeneous porous media was represented in a 2D sandbox filled with two layers of coarse and medium silica sand. Based on previous tests, the surfactant solution used was Ammonyx Lo at a concentration of 0.1% (w/w). The sandbox experimental program included tracer tests done under both uncontaminated and contaminated conditions, foam injection under uncontaminated conditions and surfactant solution and foam injection under contaminated conditions. Tracer tests indicated that the permeability contrast between sand layers was increased by LNAPL contamination. Foam injection under uncontaminated conditions presented a S-shaped front that indicated a better mobility control than the piston-shaped front obtained during tracer tests. During foam injection, complete sweep of the sandbox was achieved with 1.8 pore volume (PV) compared to 2.8 PV during tracer injection, thus indicating better mobility control with foam. Pre-flush of the contaminated sandbox with surfactant solution initiated p-xylene mobilization but no free phase was recovered at the effluent. A negligible p-xylene residual saturation was reached following foam injection in the contaminated sandbox. However, mass balance indicated a total recovery of only 48% of the initial p-xylene, thus indicating an underestimation of the recovery by volatilization. Recovery by volatilization was corrected, which gave the following proportions of LNAPL recovery mechanisms: 19% by mobilization, 16% by dissolution and 65% by volatilization. Results show the potential efficiency of foam remediation of LNAPL source zones in heterogeneous porous media. Still, further developments are needed prior to field scale application, which could benefit from in situ foam production that would simplify on-site operations.

Type de document: Article
Mots-clés libres: sandbox; foam; surfactant; p-Xylene; LNAPL recovery; mobility control
