X-Ray Computed Tomography to Measure Bed Density in Sand Transport.


Téléchargements par mois depuis la dernière année

Plus de statistiques...

Brunelle, Corinne; Francus, Pierre ORCID logoORCID: https://orcid.org/0000-0001-5465-1966; Camenen, Benoît; Amos, Carl L.; Des Roches, Mathieu; Perret, Emeline; Kassem, Hachem; Daigle, Louis-Frédéric et Després, Philippe (2022). X-Ray Computed Tomography to Measure Bed Density in Sand Transport. Journal of Hydraulic Engineering , vol. 148 , nº 12. DOI: 10.1061/(ASCE)HY.1943-7900.0002025.

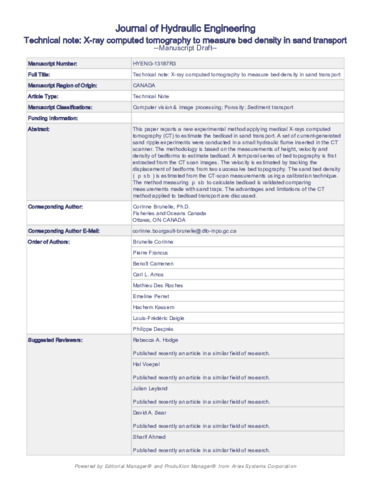

[thumbnail of P4208.pdf]
Télécharger (4MB) | Prévisualisation


This paper reports a new experimental method applying medical X-ray computed tomography (CT) to estimate the bed load in sand transport. A set of current-generated sand ripple experiments were conducted in a small hydraulic flume inserted in the CT scanner. The methodology is based on the measurements of height, velocity, and density of bed forms to estimate bed load. A temporal series of bed topography is first extracted from the CT scan images. The velocity is estimated by tracking the displacement of bed forms from two successive bed topographies. The sand bed density (ρsb ) is estimated from the CT scan measurements using a calibration technique. The method measuring ρsb to calculate bed load is validated comparing measurements made with sand traps. The advantages and limitations of the CT method applied to bed-load transport are discussed.

Type de document: Article
Mots-clés libres: tomodensitometry; sand bed; method;
Centre: Centre Eau Terre Environnement
Date de dépôt: 29 août 2023 16:06
Dernière modification: 29 août 2023 16:06
URI: https://espace.inrs.ca/id/eprint/13307
