New Insights into Hydrothermal Fluid Circulation Affected by Regional Groundwater Flow in the Asal Rift, Republic of Djibouti.

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Hassan Aden, Abdek, Raymond, Jasmin ORCID: https://orcid.org/0000-0002-7486-9185, Giroux, Bernard ORCID: https://orcid.org/0000-0002-2042-2759 et Sanjuan, Bernard (2021). New Insights into Hydrothermal Fluid Circulation Affected by Regional Groundwater Flow in the Asal Rift, Republic of Djibouti. Energies , vol. 14 , nº 4. p. 1166. DOI: 10.3390/en14041166.

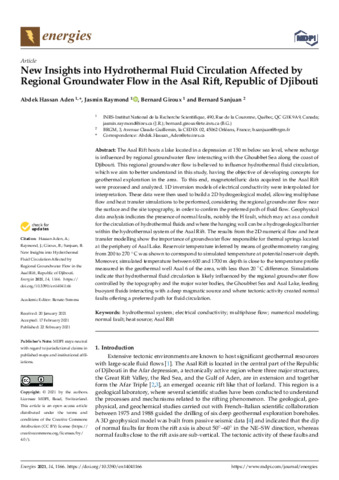

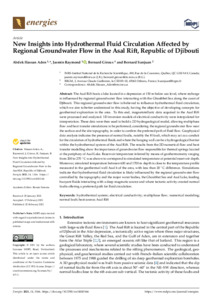

[thumbnail of P3874.pdf]
Prévisualisation
PDF
Télécharger (10MB) | Prévisualisation

Résumé

The Asal Rift hosts a lake located in a depression at 150 m below sea level, where recharge is influenced by regional groundwater flow interacting with the Ghoubbet Sea along the coast of Djibouti. This regional groundwater flow is believed to influence hydrothermal fluid circulation, which we aim to better understand in this study, having the objective of developing concepts for geothermal exploration in the area. To this end, magnetotelluric data acquired in the Asal Rift were processed and analyzed. 1D inversion models of electrical conductivity were interpolated for interpretation. These data were then used to build a 2D hydrogeological model, allowing multiphase flow and heat transfer simulations to be performed, considering the regional groundwater flow near the surface and the site topography, in order to confirm the preferred path of fluid flow. Geophysical data analysis indicates the presence of normal faults, notably the H fault, which may act as a conduit for the circulation of hydrothermal fluids and where the hanging wall can be a hydrogeological barrier within the hydrothermal system of the Asal Rift. The results from the 2D numerical flow and heat transfer modelling show the importance of groundwater flow responsible for thermal springs located at the periphery of Asal Lake. Reservoir temperature inferred by means of geothermometry ranging from 200 to 270 °C was shown to correspond to simulated temperature at potential reservoir depth. Moreover, simulated temperature between 600 and 1700 m depth is close to the temperature profile measured in the geothermal well Asal 6 of the area, with less than 20 °C difference. Simulations indicate that hydrothermal fluid circulation is likely influenced by the regional groundwater flow controlled by the topography and the major water bodies, the Ghoubbet Sea and Asal Lake, feeding buoyant fluids interacting with a deep magmatic source and where tectonic activity created normal faults offering a preferred path for fluid circulation.

Type de document: Article
Mots-clés libres: hydrothermal system; electrical conductivity; multiphase flow; numerical modeling; normal fault; heat source; Asal Rift;
Centre: Centre Eau Terre Environnement
Date de dépôt: 09 juin 2022 21:00
Dernière modification: 09 juin 2022 21:00
URI: https://espace.inrs.ca/id/eprint/11767
